Project Description

LGF membrane switch

1 embossed key with metal dome inside

2 colors

Autotex F150 as graphic overlay

3M 467 as rear adhesive

LGF (light guide film) inside membrane switch

FPC as below circuitry

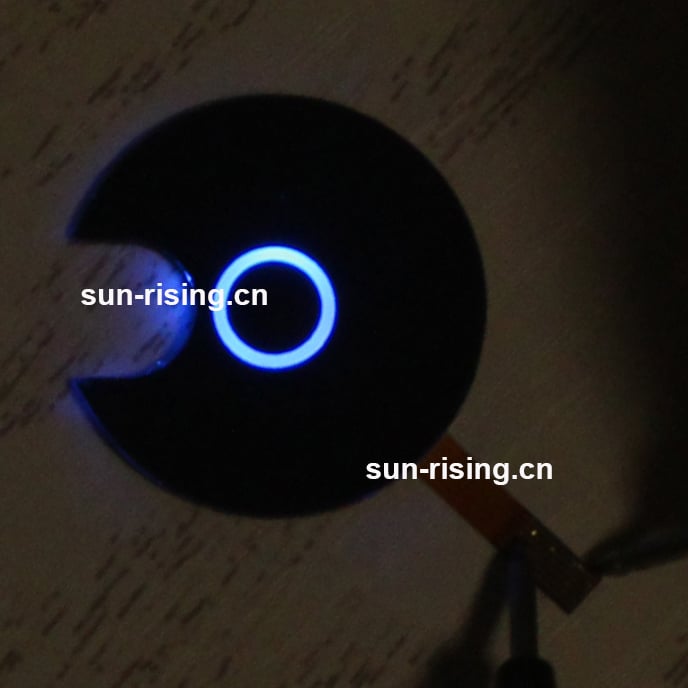

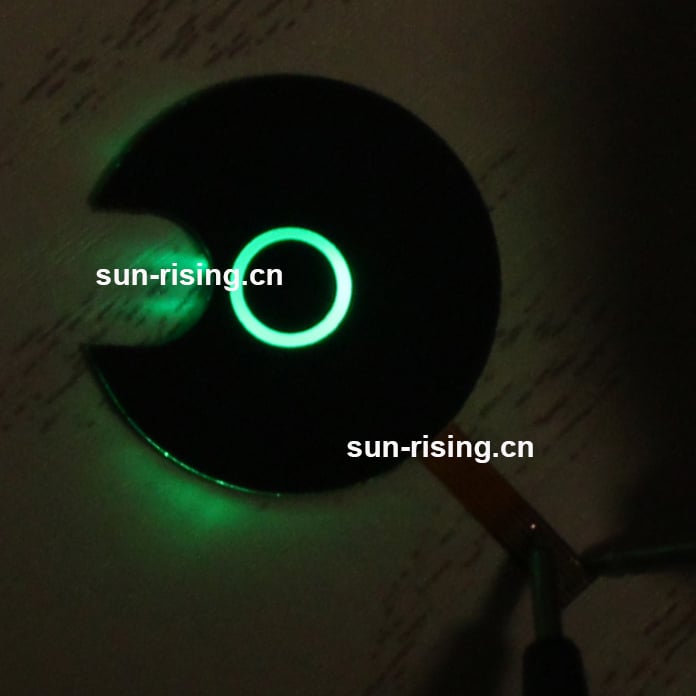

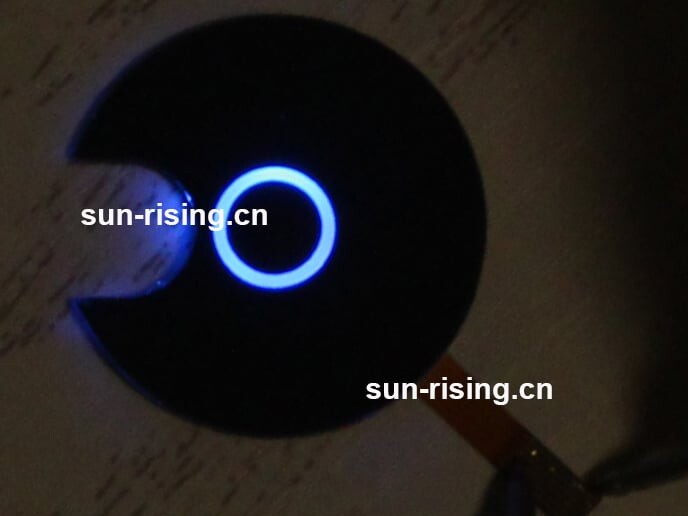

LGF (light guide film) membrane switch can offer bright and even backlighting with usual thickness of 1 mm or more; you can design custom lighting area for texts or keys and choose custom LED lighting colors (white, red, green, yellow and blue). Comparing to EL backlight, LGF (light guide film) saves EL driver IC, so circuitry for LGF membrane switch become more simple and reliable; further more, LED lighting has much longer working life  than EL light.
